Outdoor Integrated UPS

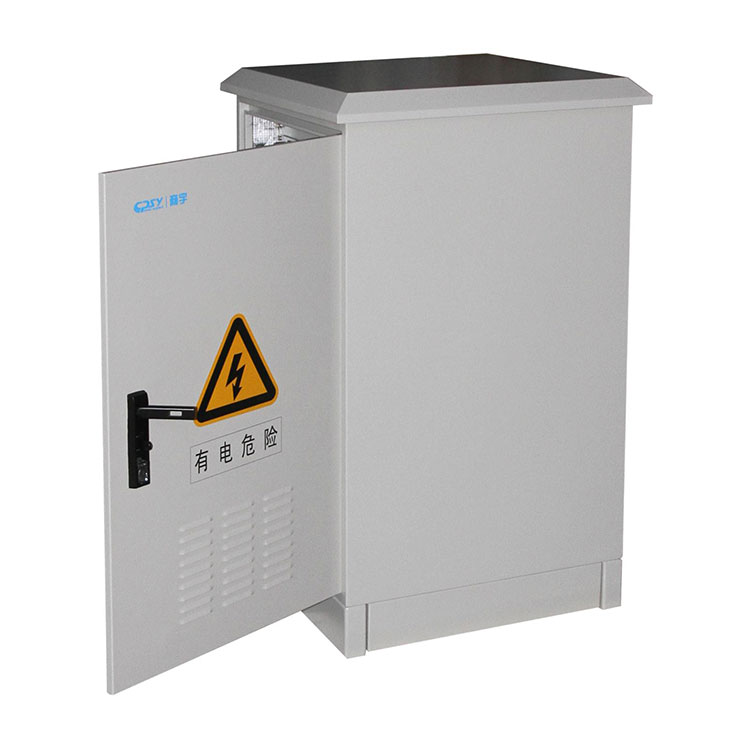

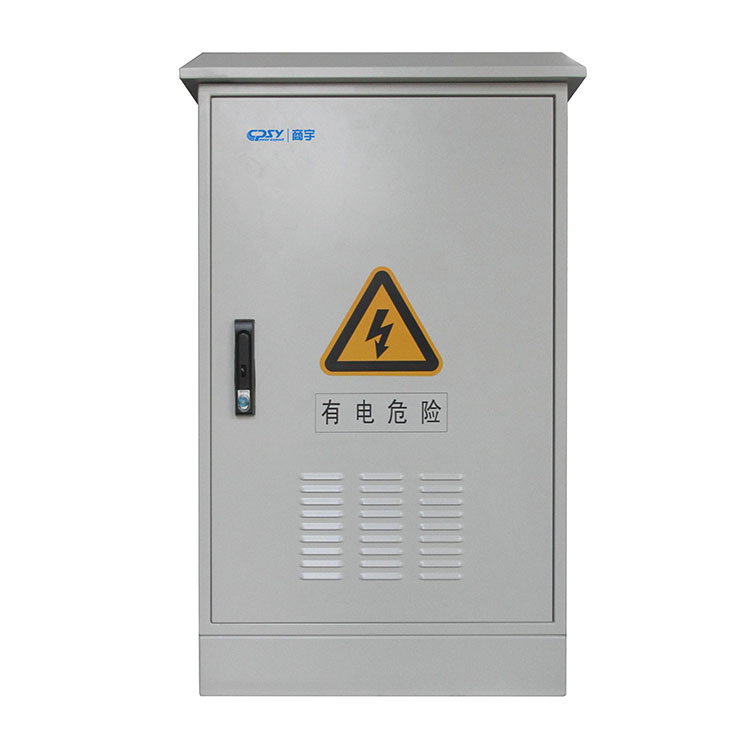

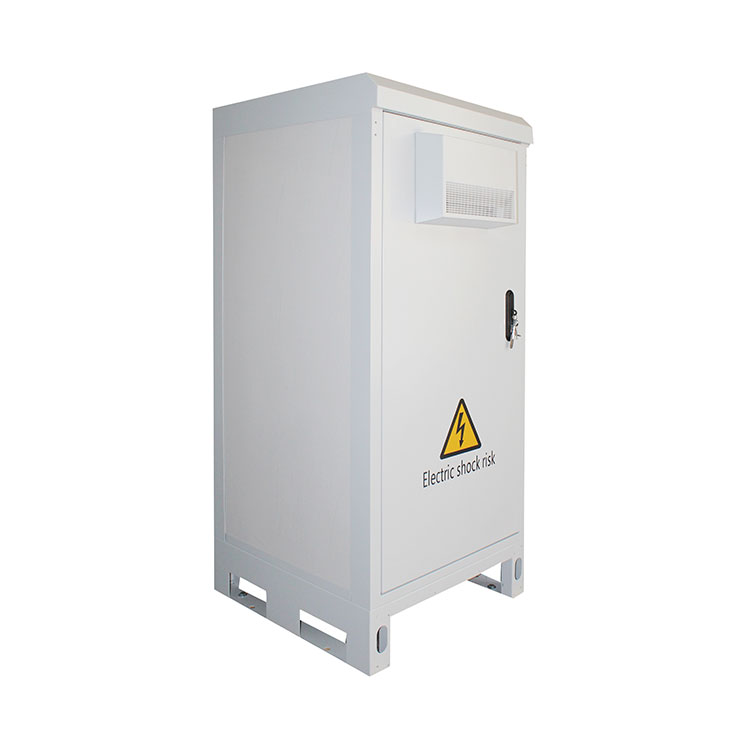

CPSY® 1000va Outdoor integrated UPS

As the professional manufacturer, CPSY® outdoor integrated UPS power system is an industrial Internet of Things network and data solution, which combines CPSY's industry-leading UPS power system with a safe, fixed, full-gigabit industrial switching platform to realize smart cities and Internet of Things applications. And easily extend the enterprise to any environment, location. The system does not include switches.

CPSY® outdoor integrated UPS power supply system provides 800W/1600W/2400W/

4800W/8000W power budget for connecting PoE-powered devices, such as IP cameras, phones, routers, access points, sensors, switches, air conditioners, batteries, etc., which makes it ideal for remote asset management and future Ideal solution for radio upgrades.

The system can provide up to 45 minutes of backup power at maximum load in the event of a power outage to support IoT applications such as security, surveillance, and edge computing/storage.

CPSY® 1000va Outdoor integrated UPS Feature And Application

The CPSY® Outdoor integrated UPS Series provides constant, reliable backup power for Access Control, Security, Public Utility and Telecommunications applications in a compact all-in-one enclosure. The CPSY® outdoor integrated UPS Series provides the same functionality as the CPSY® outdoor integrated ups Series, for lower power applications in a single, easy-to-install cabinet. Optional add-on battery cabinets support applications where longer backup times are required. The system is available in International (220V/230V/240Vac,50/60Hz) variants.

Product Highlights

Output power derates after 50°C

Compact design, integrated UPS system provides green, uninterruptible backup power

AVR function protects utility power from surge or sags in voltage

External communications via RS232/SNMP card, Support Remote monitoring and control

Temperature-compensated battery charging protects the battery from overcharging at extreme temperatures

Independently programmable control and report relays allow tracking and controlling of key functions

Event and alarm logging with time and date stamping simplifies and accelerates troubleshooting

A wide operating temperature range of -40 to 74°C (-40 to 165°F)* , suitable for the most extreme operating environments

Optional add-on battery cabinets provide longer backup times

Long-life batteries reduce maintenance costs

No assembly required

Customization available

Application:

●Telecom Equipment & Networking Closets

●Smart City and IoT applications

●Access Control and Public Utility

●Security Systems & Traffic

●Micro Data Centers & Server Rooms

●Edge Computing Sites

●Office buildings

●plastic industry

●robot

●Poor air quality environment.

●Oil rigs and oil services

●Semiconductor factories and clean environments

CPSY® 1000va Outdoor integrated UPS Details

CPSY® outdoor integrated UPS systems are ruggedized backup power supplies designed to support access control, security, utility and telecommunications applications, most of which are located in harsh outdoor locations. These UPS systems are custom engineered to provide clean, uninterrupted backup power and protect sensitive electronics in harsh climates for greater safety and reliability.

CPSY® Outdoor integrated UPS Packing details

Packing list: 1pc UPS+ a pair of foams+ 1*poly bag+User manual *1+ warranty card*1 in a carton box , then in wooden pallet.

CPSY outdoor UPS system cabinets, fireproof and waterproof, direct ventilation systems for manufacturing or integrated HVAC systems, outdoor and indoor models, custom air exchange and hydrogen sensors for harsh industrial environments.

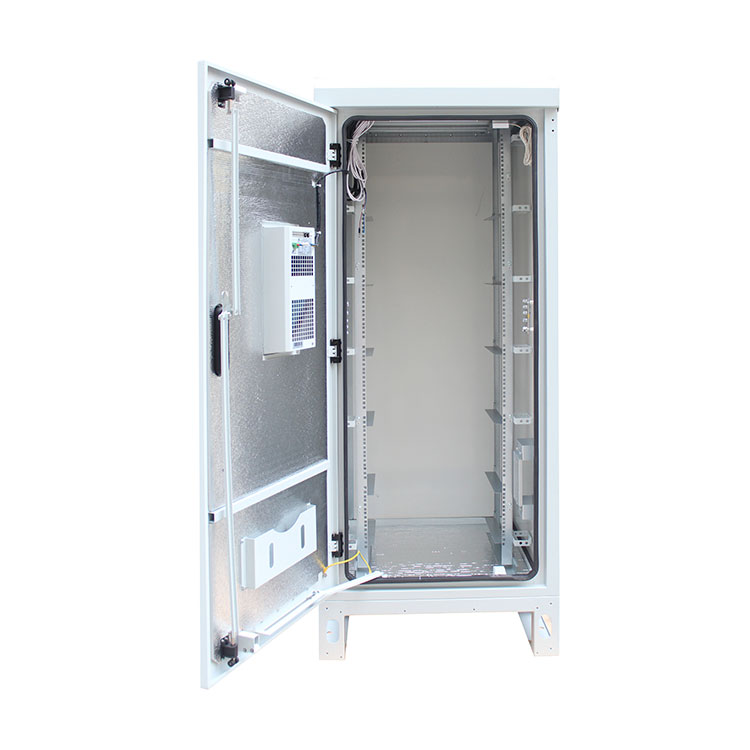

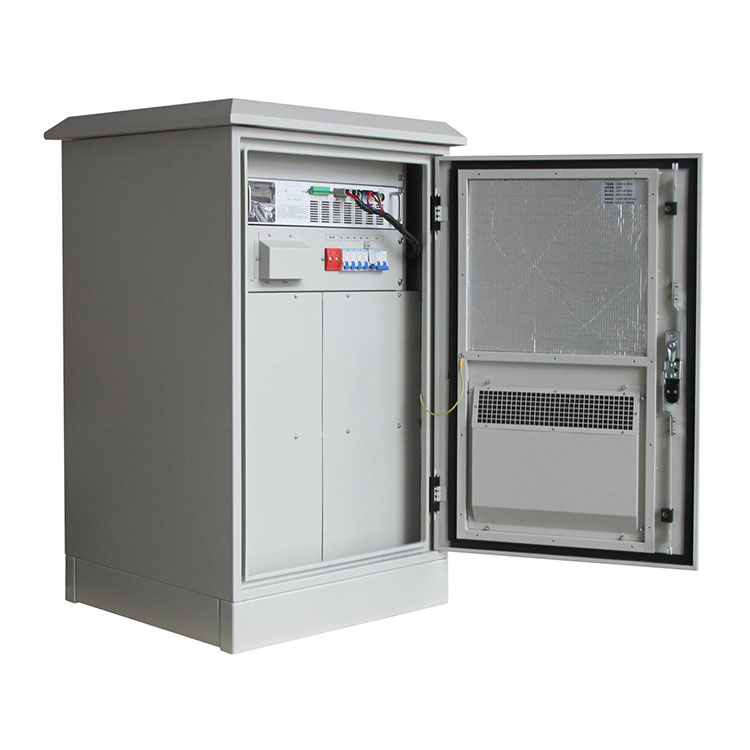

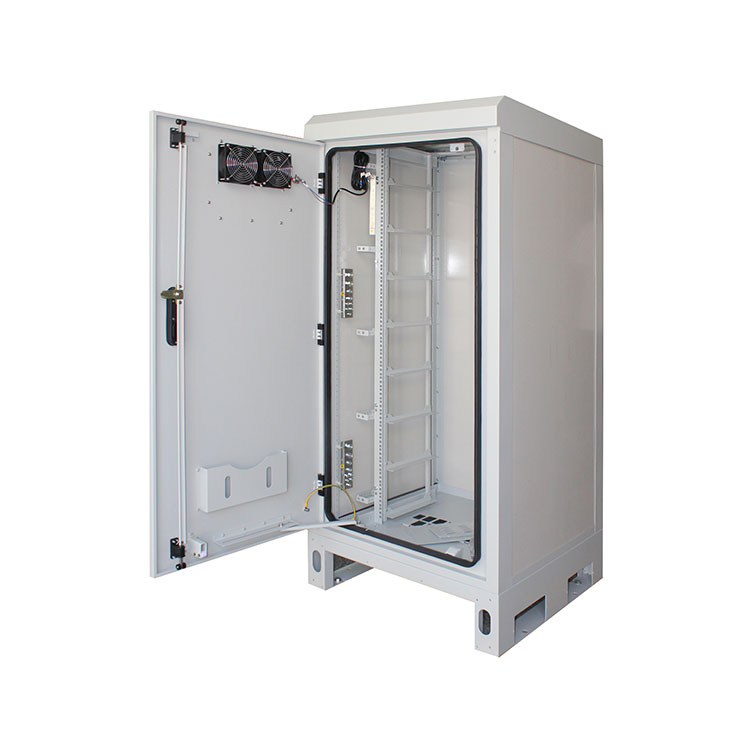

Outdoor UPS Cabinet Internal Components

Outdoor UPS cabinets are capable of housing battery systems (mainly using VRLA, Li-ion battery types), UPS systems, inverter systems, bypass, power distribution, fire protection, any other customer designed electrical components, computer systems or integrated monitoring and remote alarms systems, generators, etc.

Main Features/Applications

Universal mounting bracket for easy mounting on almost any pole or wall

CPSY IP54 or 4X-rated rainproof housing is tough enough to protect the device from the elements

Padlockable wing knobs prevent tampering and damage

Flexible charging system, accepts 120VAC – 220VAC

Uses high-tech LiFePO4 batteries or select SLA batteries for long backup time, providing 24 hours to 10 days of backup time when grid power fails

Plug-and-play power options for any low-voltage DC application

Completely self-contained, batteries, PoE injectors and converters, charging and other equipment are protected from the elements and from tampering.

Powers outdoor surveillance and communication equipment such as cameras, gateways, antennas, P2P radios, etc.

Provides power to devices on poles when a timer or photocell automatically shuts off.

Easy installation with plug-and-play connectors and universal pole mount.

1KVA 220V 230V 240V Integrated Outdoor online UPS IP55

Supply Ability:500 Piece/Pieces per Month UPS

Packaging Details：Carton, export type packing or according to your requirement

Port：Shenzhen

Key Features

1.CPSY Outdoor Intelligent High Frequency Online UPS provide continuous pure sine wave AC power supply for outside communications / network equipment.

2.Double-conversion online design, high temperature resistant, anti-cold, sealing level for IP55; With the wide range of input voltage and frequency of input window (- 45% +35% rated voltage and ± 10% rated frequency), in many remote areas of China after a severe test of the grid.

3.Using microprocessor control, directly produce highfrequency pulse width modulation wave (SPWM) control of the UPS inverter, to simplify the UPS control circuit, to improve the stability, to have more real-time UPS to quickly respond to changes in the external environment and guarantee the machine’s control circuit is more simple and reliable.

4.Using digital control techniques, to avoid the traditional analog control temperature drift inherent defects such as hardware parameters, to ensure consistency and reliability of UPS

Application

This UPS is commonly used in the corner of the city, remote roads, mountains, bad environment, such as high temperature (+50 °C) / low temperature (-40 °C), severe dust, moisture, rain, mist erosion, very poor power quality (voltage longterm higher than 260V or less than 160V, frequency abnormal change) in the area.
